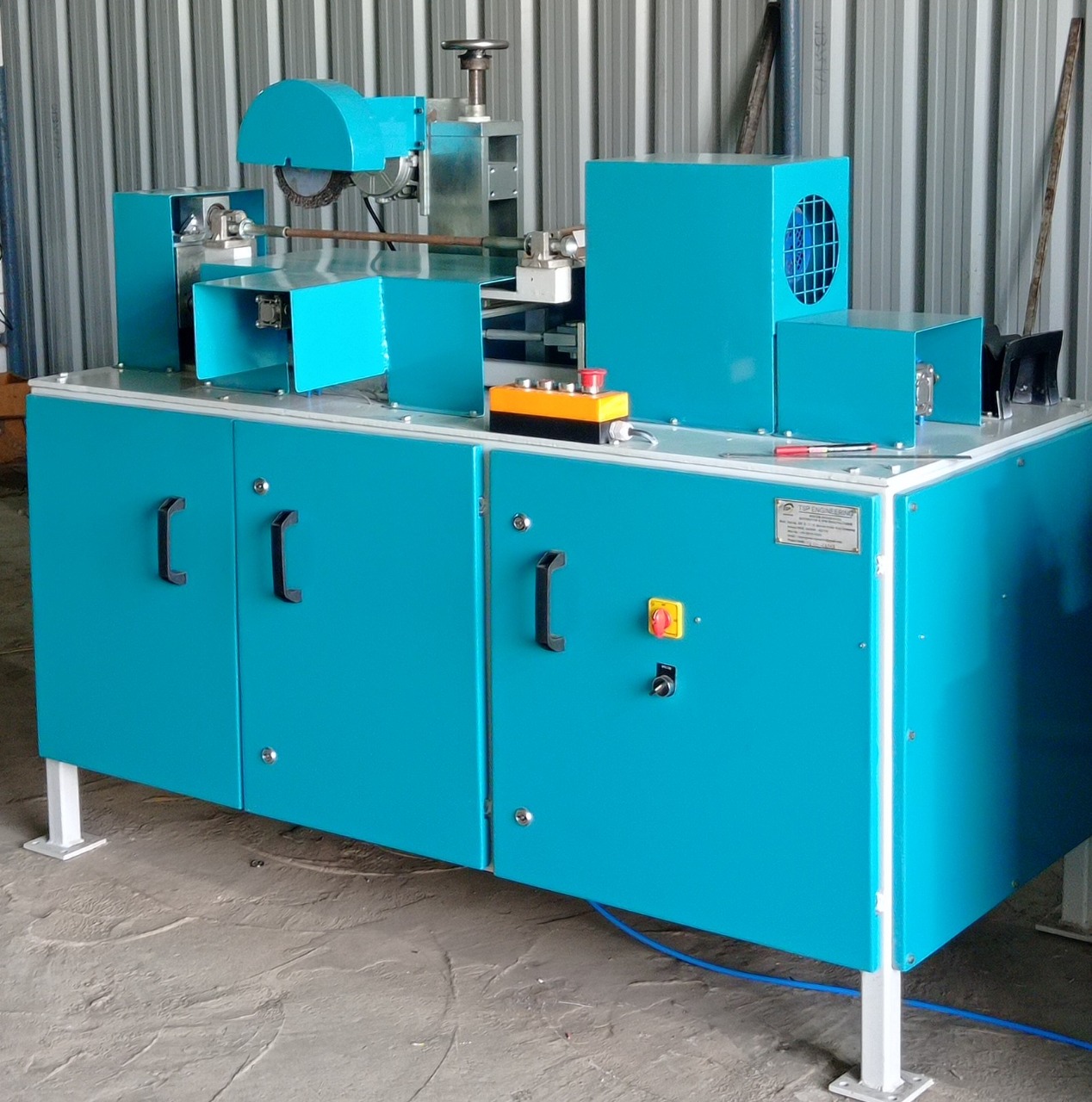

OD De-Flashing Machine

• This machine removes excess rubber from the Outer diameter of the Automobile Bushes
• Specific arrangement of brush height can be adapted for multiple diameters of jobs.
• This machine has one cleaning station and changeable brush
Specification-
• Frame Assembly with MS covers & doors (powder coated).
• One cleaning station with changeable brush.
• Cleaning length: 410 mm. Can accommodate multiple components within this range
• Specially designed job holding rods, to load the components.
• Motor for rotation of job holding rod.
• Pneumatic operated job loading station.
• Control Panel to control the quick cycle with easy access to operator.
• Easily replaceable job holding fixture (Can accommodate job of different diameter ranging from OD 20 mm to 100mm).
• Machine Footprint: 700mm X 1600mm.

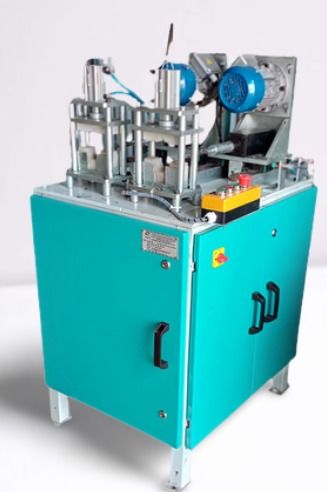

ID De-Flashing Machine

• This machine removes excess rubber from the inner diameter of the Automobile Bushes
• Job clamping operations are pneumatically done which ensures accuracy and durability
• It has two stations with the changeable brush/Remer/Drills.
Specification-
• Fabricated MS Structure with cover Powder Coated
• Pneumatically operated Job clamping unit
• 2 Nos. of sliding assembly with 0.5 Hp motor and Drill/Reamer mounting socket.
• 2 Nos. of Pneumatically sliding assembly with LM Rail and LM Block
• Electric Control Panel, with PLC mounted inside with easy access to operator.
• Job ID Size 10mm to 20mm

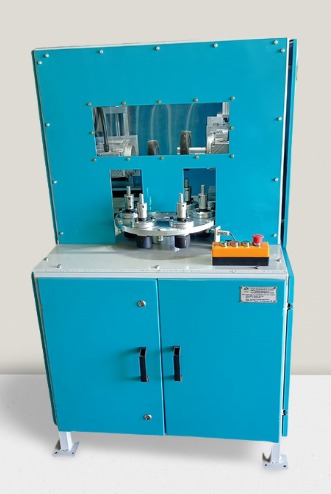

Face De-Flashing Machine

• This machine is designed to Remove excess rubber from the Automobile Bushes.
• It comes with two stations with one for cleaning of Inner face while the another for cleaning of outer face.
Specification-
• Frame Assembly with MS covers & doors (powder coated).
• Two cleaning station with changeable brush.
• Station 1 for cleaning face of inner, Station 2 for cleaning face of outer.
• Indexer for job loading/unloading.
• Job rotating unit for rotating the job while in contact with Brush.
• Motor and Gear box unit for Rotary indexer.
• 6 Nos of Job holding fixture mounted on indexer.
• Screw arrangement for easy adjustment/setting of cleaning wheel.
• Control Panel to control the quick cycle with easy access to operator.
• Easily replaceable job holding fixture (Can accommodate job of different diameter ranging from OD 20mm to 100mm).
• Machine Footprint: 900mm X 1000mm.
• Working Height: 900 mm.
• Cycle time per piece with both side cleaning @ 5 seconds
