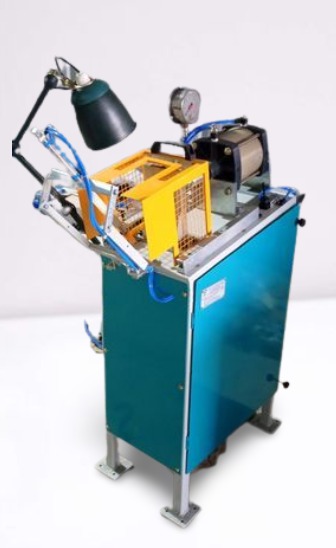

Bond Testing Machine

• This machine is designed to test the bond of various bushes after the molding process.
• Attractive pneumatically operated machine which gives precise results, also provides proof load testing due to presence of pressure gauges.
Specification-
• Pneumatic Operated Proof Load Testing Process
• Testing Capacity: 1 Ton (Cylinder Size- Diameter 150mm X Stroke 75 mm)
• Manual mode operation of testing
• Pneumatic Operated OK Marking system
• Accommodates different types of components up to 70mm diameter.
• Glass mirror for Visual inspection with Light source.
• Pressure Gauge for proof load testing.
• Adjustable proof load.

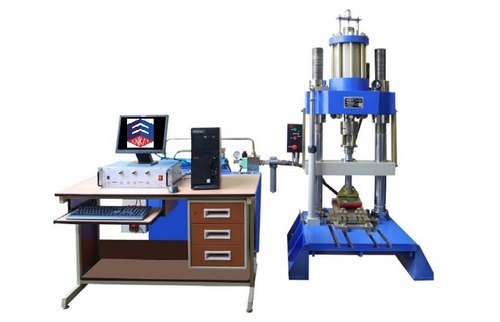

Load Deflection Test Rig

• This setup is designed to carry out push/pull force measurement of various rubber mounted components using suitable adaptor fixtures.
• 50 kN capacity load cells are provided-
• Precision displacement sensor is provided to measure displacement.
Specification-
• The complete set up is provided with strong and sturdy fabricated frame structure made out of M.S channels and plates.
• Adjustable load support member is provided with locking arrangement as per test component height.
• Hydraulic Power Pack with all accessories having capacity 5 Ton @ 120 Bar
• Hydraulic Cylinder Dia 80 mm with stroke 300 mm
• Electrical control panel comprises of-Programmable logic controller with Monitor display indicates load applied to test component with peak hold facility.
• 50 kN capacity universal load cell with 0.01kN least count.
• 0 – 250mm displacement sensor with least count of 0.1mm.
• Display of all parameters on computer monitor i.e., Force, Deflection, peak force , peak elongation Force vs deflection graph, Component no., Part name, Date, Time etc
• Other electrical accessories such as contactors, MCB, push buttons, indicator lamps, Up/Down selector switches etc.
• P.C based data acquisition and report system with online graph and report printing in tabular and graphical format with desktop P.C.
