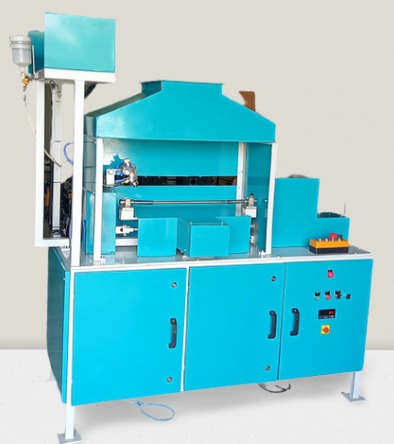

OD Spraying Machine

• This machine is designed to apply adhesive or paints on metal/plastic components before moulding.
• It is specifically used for Outer diameter spraying.
• It comes with very efficient and reliable adjustable gun as well as pneumatic spraying mechanism
Specification-
• Frame Assembly with M.S. covers & doors (powder coated).
• Pneumatically operated Spraying unit
• Pneumatically operated Job clamping unit.
• Spray Coverage:
1. For round Components range from Día 10mm to 100 mm. X 410 mm. (Actual spraying area 400mm lengthwise) And can accommodate number of components within this range.
• Electric Control Panel, with Drive & PLC mounted inside with easy access to operator.
• Machine foot print:1600mm X 700mm
• 1 Nos. of Gun to be used (Gravity Feed-Auto)
• 2 Nos. of 10 liters SS tank with electrical stirrer 30 RPM along with Gun cleaning system will be provided.

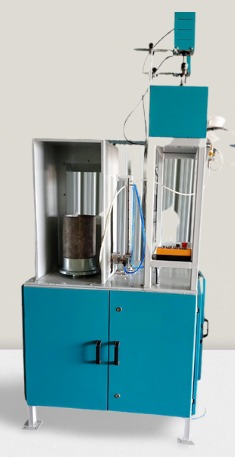

Vertical OD Spraying Machine

• This machine is designed to apply adhesive or paints on metal/plastic components before moulding.
• It is specifically used for Outer diameter spraying.
• It comes with very efficient and reliable adjustable gun as well as pneumatic spraying mechanism
Specification-
• Frame Assembly with M.S. covers & doors (powder coated).
• Pneumatically operated Spraying unit with FCVs for adjusting Gun movement.
• Pneumatically operated Job holding & rotating unit.
• 1 No. of movable (Upward & Downward) gun for spraying OD of component
• Available spray length 300mm and can be adjustable w.r.t to components width. Each holder can be loaded to spray multiple jobs within the set range.
1. Effective Length of spray is 350mm.
2. OD Components size- 50mm to 300mm
• PLC based Electric Control Panel with Counter.
• Cycle time: 10-15 Sec (Cycle time may vary as it depends upon the Components Diameter and operator skill and speed).
• 2 Nos. of 10 Liters tank with stirrer with one Gun cleaning unit will be Provided

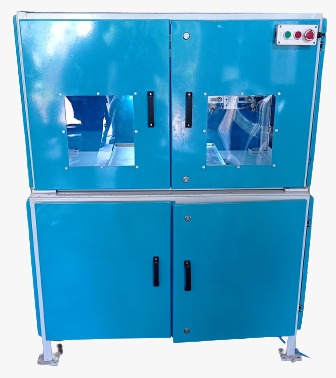

X-Y Axis Spraying Machine

• This machine is designed to apply adhesive or paint on Flat/Engine mount metal components before molding and Same machine use for Final component paint.
• This automated machines for spraying primer & adhesive onto the metal components are capable of handling different metal components.
Specification-
• Frame Assembly with M.S. covers & doors (powder coated).
• Pneumatically operated X-Y Axis Spraying unit
• Spray Coverage:
1. Spraying range 600mm * 600mm and can accommodate number of components within this range.
2. 90 degree Auto indexing of fixture for all side coverage of components.
• Electric Control Panel with PLC mounted inside with easy access to operator.
• Machine foot print:1300mm X 1500mm
• 2 nos. Auto Pressure feed Gun to be used
• 2 Nos. 9 liter Pressure feed tank with Electrical Stirrer and Gun cleaning system will be provided.

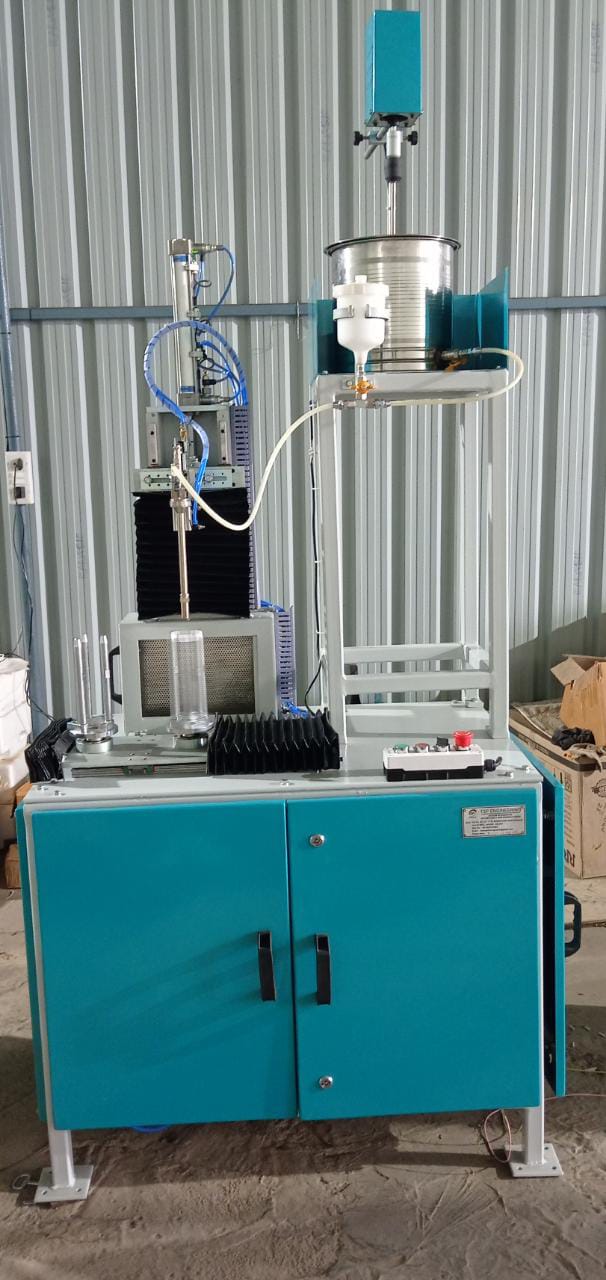

Vertical ID Spraying Machine

• This machine is designed to apply adhesive or paints on metal/plastic components before moulding.
• It is specifically used for Inner diameter spraying.
• It comes with very efficient and reliable adjustable gun as well as pneumatic spraying mechanism
Specification-
• Frame Assembly with M.S. covers & doors (powder coated).
• Pneumatically operated Spraying unit
• Electrically operated job rotating units, one each for loading/unloading & spraying.
• Pneumatic movement from loading to spraying station
• The above mentioned job holders are adjustable and can accommodate job sizes ID componants 25mm to 100 mm
• 1 Nos. of movable (Upward & Downward) Gravity feed spray gun
• Available spray length 180mm. Each holder can be loaded to spray multiple jobs within this range.
• PLC based Electric Control Panel with Counter.
• Cycle time: 8-10 Sec (Cycle time may varry as it depends upon the operator skill and speed)
• 2 Nos. of 10 Liters tank with electrical stirrer with one Gun cleaning unit will be Provided
